Quotes - Engineering - SalesBeer and Stillage Interchange
The Plant's Biggest Regenerative Duty
The beer going to the column has to be heated. The stillage leaving it has to be cooled. Putting the two against each other is the largest continuous heat recovery duty in the plant.
Beer leaving fermentation has to reach distillation temperature. Whole stillage leaving the bottom of the beer column has to come back down. Those two requirements are the same energy moving in opposite directions, and an interchanger between them recovers it instead of buying steam to add and cooling water to remove.
Approach temperature is the whole argument. Every degree the interchanger fails to recover is a degree the reboiler has to supply and the cooling system has to reject, every hour the plant runs. That is why a close approach is worth buying surface for here in a way it rarely is on an intermittent duty.
Both sides foul. Beer carries yeast and fines; whole stillage carries grain solids. This is not a duty where a tight plate pack survives, and the channel geometry has to be chosen for what is actually in both streams rather than for the best coefficient on paper.
It has to be maintainable. The interchanger is on the critical path - if it is down the plant is down - so it needs to open, be inspected and go back together within a turnaround rather than requiring one of its own.
Buy the Approach, Because It Runs Every Hour. On an intermittent duty, a wide approach is a nuisance. On a continuous one it is a running cost with no end date. The interchanger is the clearest case on the site for spending on surface area to close the approach, because the saving is collected every hour the plant is up rather than on the days it happens to be loaded.
The calculation is worth doing properly rather than by rule of thumb. Send both streams and the pressure drop you can afford on each, and the trade between surface, approach and pumping cost can be worked explicitly.
Design for the Turnaround. This unit is in series with production. Specify it so that a plate pack can be opened, inspected and closed inside a planned outage: clearance in front of the movable end frame, room to lift plates out, and a spare gasket set on the shelf.
Where the interchange is large enough that a single unit would be a single point of failure, splitting the duty across two frames is worth costing. It is a decision that has to be made at selection, not later.
Interchange Selection
Duty Inputs
- Beer: Flow, inlet and required outlet temperature
- Stillage: Flow, inlet and required outlet temperature
- Solids: Content on both sides
- Pressure drop: Allowable on each side
Why It Pays
- Recovers heat continuously
- Cuts reboiler steam demand
- Cuts cooling load downstream
- Close approach compounds annually
Size the interchanger for fouled, continuous duty
- Both streams carry solids
- Every degree of approach costs hourly
- Opens inside a planned turnaround
What buyers in this market ask
Closer than on almost any other duty in the plant, because surface is paid for once and steam is paid for every hour. The limit is usually pressure drop and velocity, not price. Spreading the flow over more plates in parallel slows the stream, and slow stillage fouls faster. Give us your steam cost and allowable pressure drop and we will show where the curve flattens.
Single pass keeps every connection on the fixed end frame, so the pack opens without breaking any piping. Multi-pass raises velocity and thermal length, which helps on a close approach, but it puts nozzles on the movable frame and turns every inspection into a pipefitting job. On a unit that sits on the critical path, that difference shows up in the length of the turnaround.
On most plants whole stillage gets there first, since it carries the heaviest grain solids and runs hottest, but yeast-laden beer can surprise you. Trend pressure drop on each side separately rather than across the unit as a whole. The side who's drop climbs first decides the schedule, and the plate geometry should be chosen to suit that side.
Two frames cost more in piping, valves and floor space, and they give you a plant that keeps running at reduced recovery while one unit is open. A single frame is cheaper and simpler, and every cleaning stops production. The deciding number is what an hour of lost throughput costs your plant against the extra installed cost. Tell us that and we can lay the two options side by side.
Watch the approach temperature and the reboiler steam flow rather than the calendar. As deposits build, the approach widens and the column draws more steam to make up the difference, often weeks before pressure drop looks alarming. Set a cleaning trigger on approach, plan the outage around it, and the unit gets opened when it needs it instead of when it fails.
Related
Ethanol Production
From slurry to beer, a dry mill is a sequence of temperature steps. Each one is an exchanger, and each one...
+ Learn More

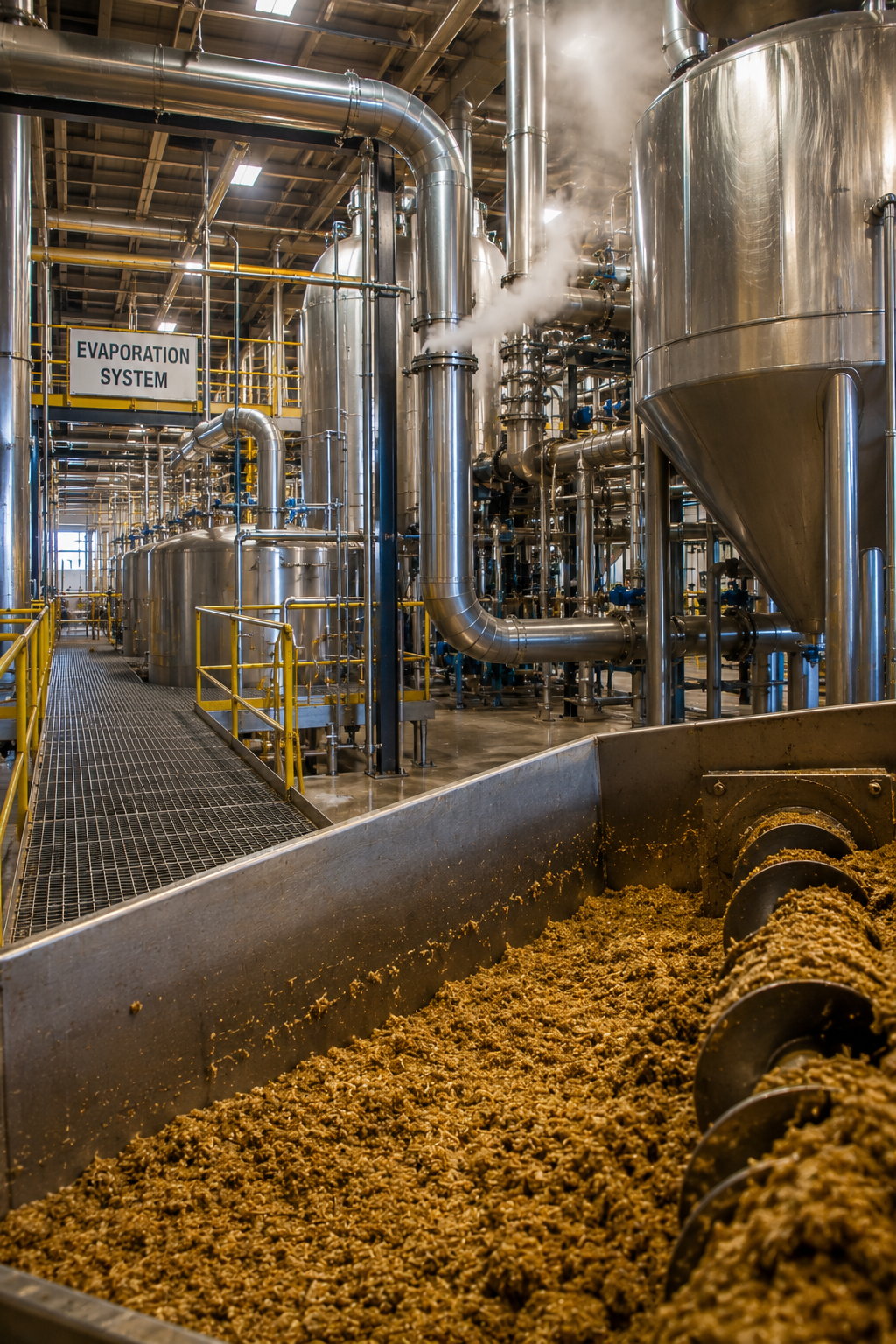

Distillers Grains & Evaporation
