Keeping Equipment Running After the Sale
A plate exchanger is a machine with consumables, and the whole point of a gasketed frame is that it can be maintained. These pages cover what that maintenance involves and what we can supply.
A plate exchanger is a machine with consumables, and the whole point of a gasketed frame is that it can be maintained. These pages cover what that maintenance involves and what we can supply.

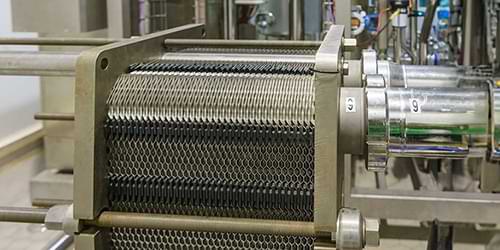

Plate Exchanger Service
The advantage of a gasketed plate pack is that it opens. That advantage only pays off if opening it is a planned, routine operation rather than an eme
SELECT

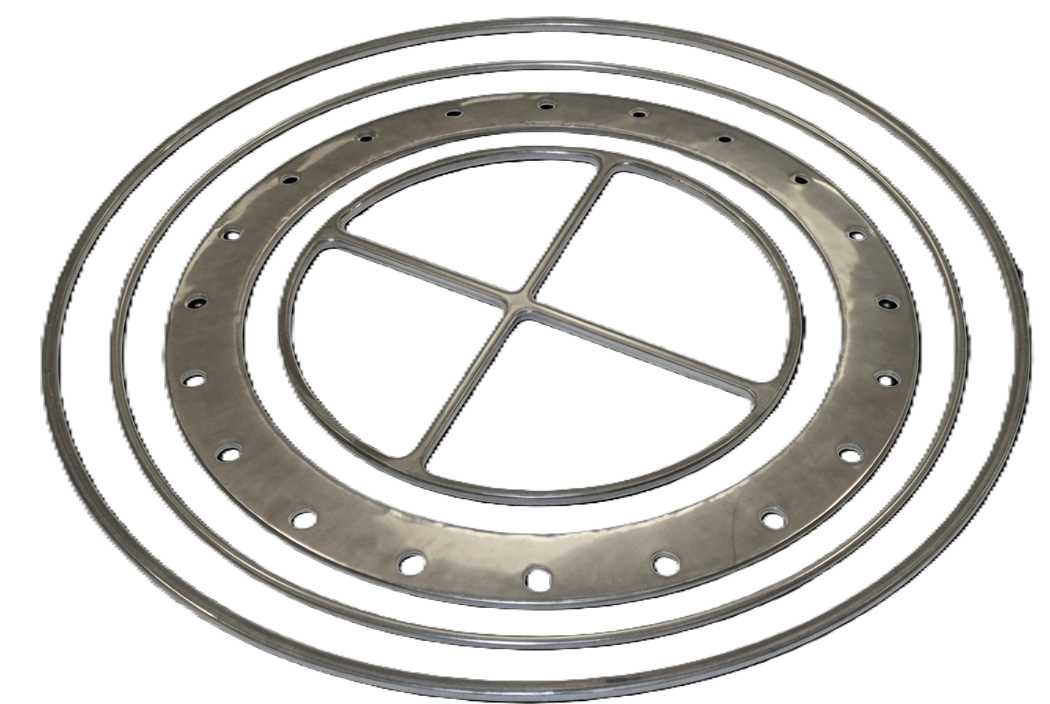

Parts & Gaskets
Genuine plates, gaskets, frames and hardware for the Mueller equipment we supply, identified from your unit rather than from a measurement.
SELECT

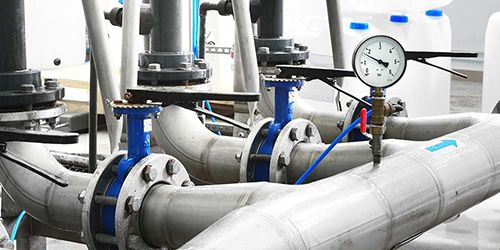

Engineering & Selection
Every unit we quote is rated against your actual conditions before it is priced, so the selection is settled before the number is.
SELECTSupport After the Sale
A Plate Exchanger Is Designed to Be Maintained
The whole point of a gasketed frame is that it opens. Gaskets are consumables, plates can be cleaned and inspected, and the pack can be expanded when the duty grows. None of that is a weakness; it is the reason the technology has lasted.
What turns that into an advantage is planning. Trending approach temperature or overall coefficient tells you when a unit needs attention far more reliably than a calendar, and most plants that adopt it end up servicing less often with better availability.
Parts Come From the Nameplate
Plates and gaskets are model and pattern specific. Two plates that look identical across a workshop bench are frequently different parts, and fitting the wrong one produces a pack that will not seal and cannot be diagnosed by eye.
Photograph the nameplate and send it with the inquiry. The serial number is the reliable route to an accurate parts list and it takes a fraction of the time that measuring does.
Engineering Before the Order, Not After
Every unit is rated against your actual conditions before it is quoted. Where the rating shows a poor configuration, a velocity outside the useful band or a pressure drop the system cannot deliver, we would rather say so and propose an alternative than quote what was asked for.
That includes recommending a different construction, and occasionally recommending against a purchase entirely.
Questions buyers ask
Access is the difference. A gasketed pack can be opened, cleaned plate by plate and resealed, so fouling and a tired seal become maintenance jobs instead of a replacement. A brazed unit has to be cleaned in place or swapped once it fouls past recovery. If your stream scales or carries fibers, that usually settles the construction before price does.
Inlet and outlet temperatures on both sides plus the pressure drop across each circuit, read at a steady load. From those you can work out approach and an overall coefficient and plot them week to week. Rising pressure drop with falling duty points to fouling, while a sudden shift on one side alone often means a flow or valve change upstream.
Fit is the usual casualty. Groove profile, hanger notch and corrugation depth vary between plate families, and a near match can close to the right dimension while leaving channels misaligned or gaskets riding out of the groove. The pack then weeps or loses duty and nobody can see why. Genuine Mueller parts ordered against the serial number remove that variable.
We would rather raise it before a quote than after a startup. A sanitary gasketed unit, a semi-welded pack for ammonia or a Temp-Plate jacket on the vessel itself can each be the better answer to the same heat load. Send the process conditions and the way the unit will be cleaned, and the rating will show which construction holds up over years of service.
