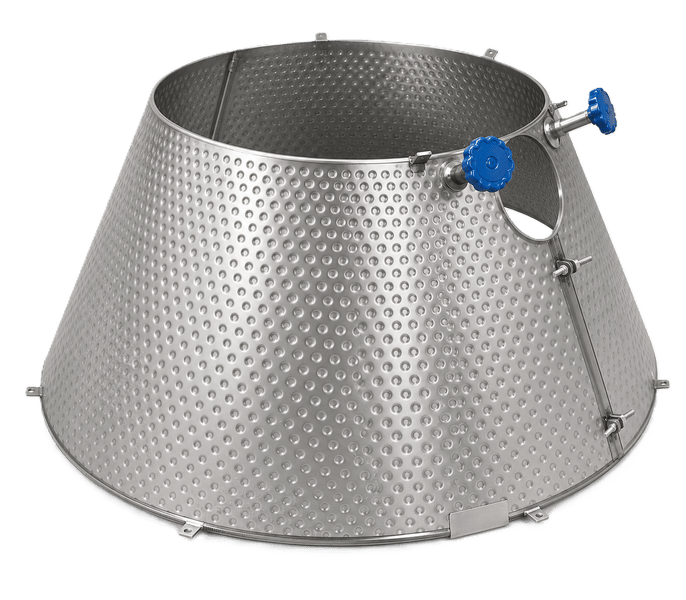

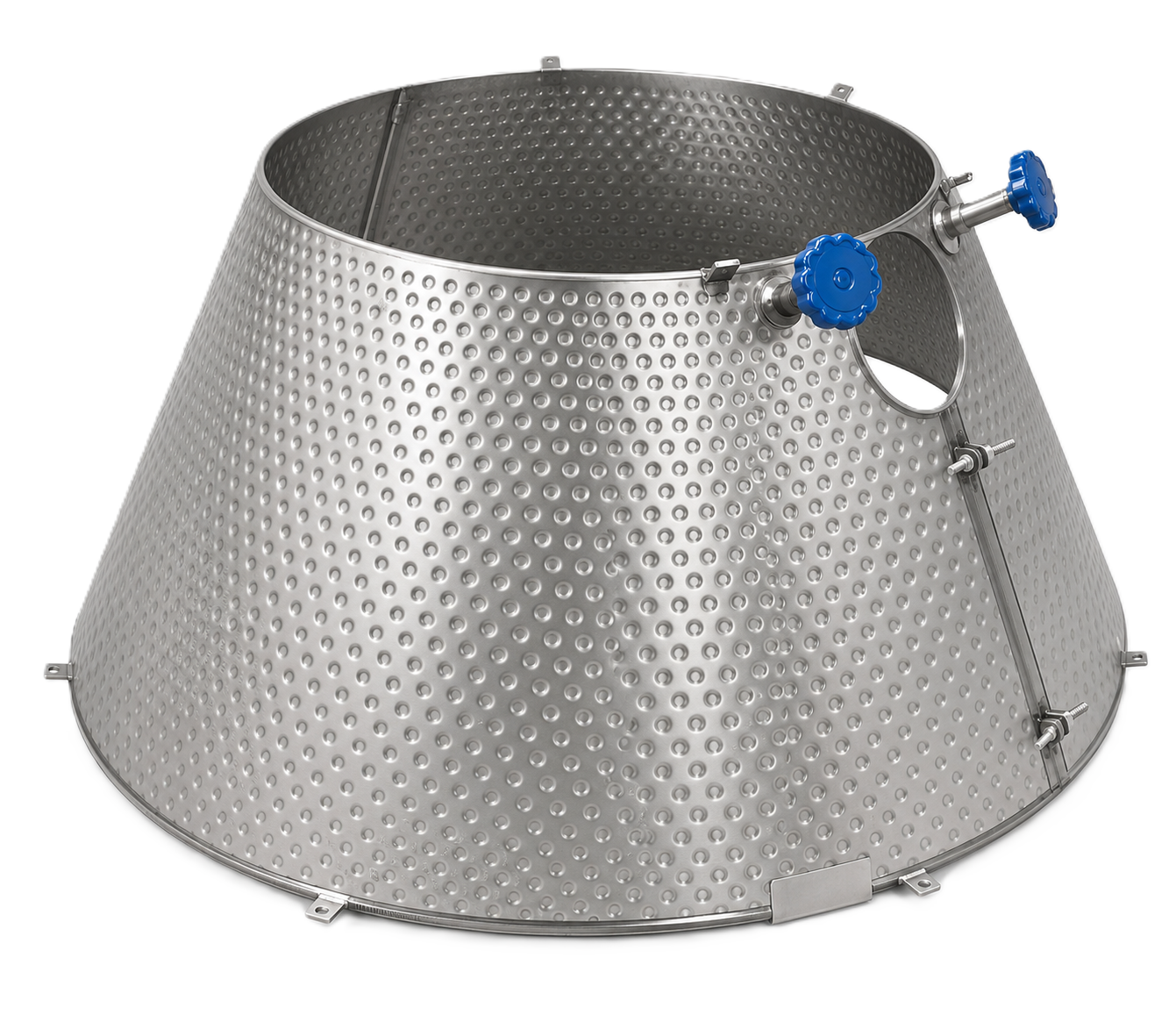

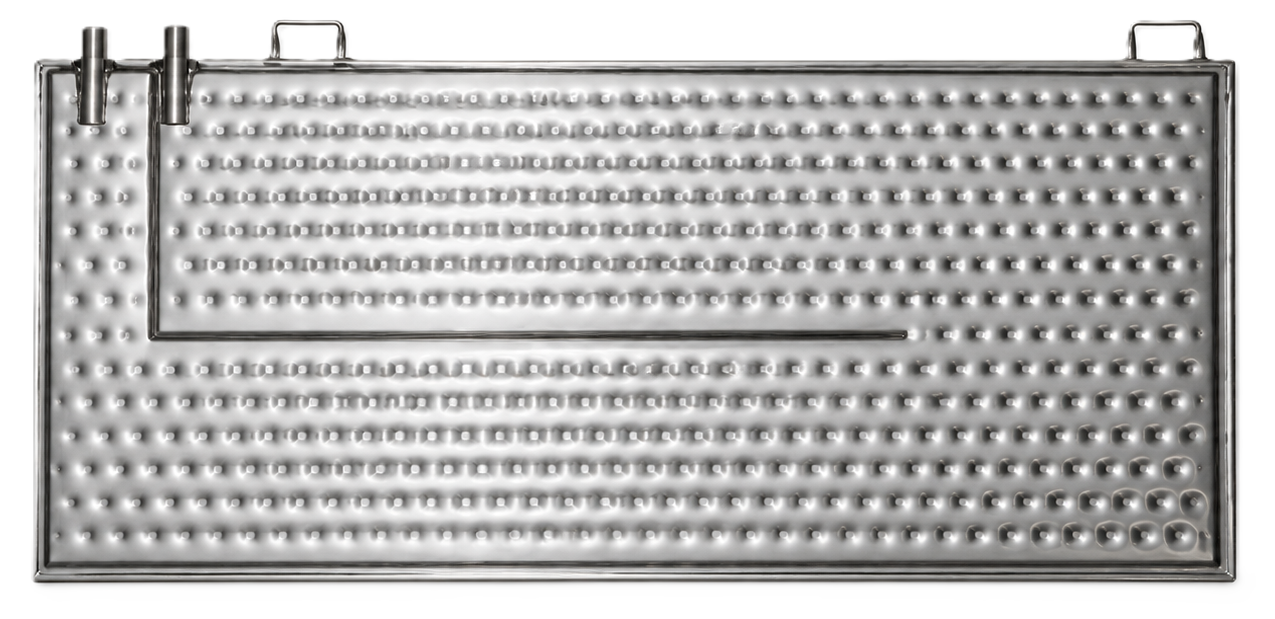

Formed to Your Drawing
Custom Temp-Plate work covers everything that is not a standard immersion, clamp-on, bank, integral or drum assembly. Panels are rolled, formed, cut and welded to whatever geometry the application requires, then inflated and pressure tested.
What we need. A drawing or a sketch, the design pressure and temperature on the media side, the process conditions on the product side, the material and finish, and any code requirement. Where the geometry is unusual, a conversation early saves redrawing later.
Materials and thickness. Commonly used material and thickness combinations cover most work. Where a specific combination is needed for a design pressure or a forming radius, it is engineered rather than substituted.
Finishes. Mill, polished and passivated finishes are available, which matters where the panel is a product contact surface or sits in a washdown environment.
Part numbers. Every catalogued model, with the dimensions and ratings that separate them: Temp-Plate Panel Sizes and Designations (20 part numbers).
Common to the Whole Series
Configuration
- Spot Weld Spacing: 1-5/8" x 1-7/8" or 1-1/2" x 1-1/2"
Materials
- Finish: 2B mill standard; No. 4 (150 grit), electropolish, sandblast, glass bead
- Sheet: 304/316L SS standard; AL6XN, SMO 254, carbon steel, duplex 2205, Hastelloy, Titanium
Ratings
- Max Temperature: 400°F
- Min Temperature: -20°F
Typical Specification
- Geometry: Rolled, formed, cut and welded to drawing
- Panel size: Up to approximately 60 x 240 inches per panel
- Embossing: Single or double embossed to suit the application
- Materials: 304 and 316 stainless, carbon steel, titanium, high alloys
- Finishes: Mill, polished, passivated
- Design pressure: Engineered to the specified duty
- Testing: Pressure tested before shipment
- Codes: Code construction available where required
- Inputs needed: Drawing, design conditions, material, finish, code
- Lead time: Quoted with the design; driven by material and forming
| PRODUCT | CONSTRUCTION | MATERIALS | SUPPLY |
| Custom Temp-Plate Panels | Mueller factory built | 304 / 316 stainless | Authorized representative |
Custom Temp-Plate Panels
Bring the Problem, Not the Product Code
The most useful enquiries describe what needs to happen thermally and where, rather than naming a panel type. Half of custom Temp-Plate work turns out to fit one of the standard assemblies once the problem is understood, which is faster and cheaper for everyone.
The other half genuinely needs something built, and those are the interesting ones.
Temp-Plate Panel Sizes and Designations
Temp-Plate Dimple Jackets Part Numbers
Temp-Plate is engineered to order and has no catalogue number in the way a frame does. The designations below are descriptors built from Mueller's published standard sizes, gauges and flow-pattern types — they are a way to specify a panel, not SKUs to order against.
Reading a designation. TP-DE-T5-12X29-18on18 is a double-embossed panel, flow pattern Type 5, twelve by twenty-nine inches, made from an eighteen gauge sheet pair. Change any of those four and you have a different panel.

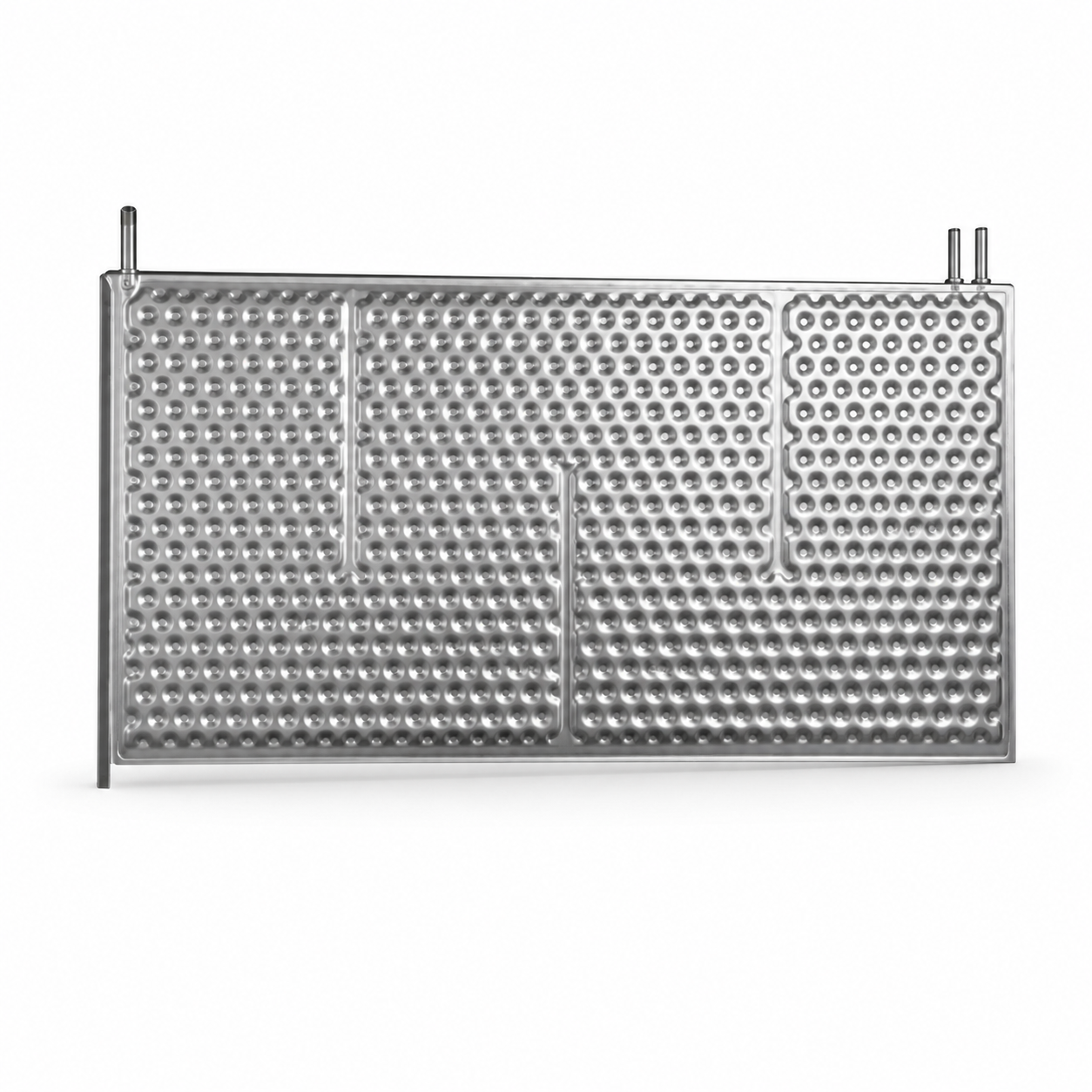

Construction. Double-embossed inflates both sheets and is what goes into a tank. Single-embossed keeps one face flat so it can be welded to a vessel wall or a drum.
Temp-Plate Panel Sizes and Designations
Flow Pattern Type Is the First Decision
The type number describes how the medium travels through the panel. A serpentine pattern gives a long path and a large temperature change across the panel; a parallel pattern gives a short path and a uniform surface temperature. Which you want depends on whether you are holding a vessel at temperature or pulling heat out of a product quickly.
Uniformity matters most on drums and rolls, where surface temperature becomes product thickness.
Gauge, Pressure and Where the Panel Goes
The sheet pair gauge sets the pressure rating, and the rating differs depending on whether the panel is built to ASME. Both figures are in the shared specification above — the non-ASME rating is the higher of the two, and which applies to you is a code question rather than a preference.
Any size outside this table is a drawing rather than a catalogue lookup. That is normal for Temp-Plate; send the vessel and the duty.
Part Numbers

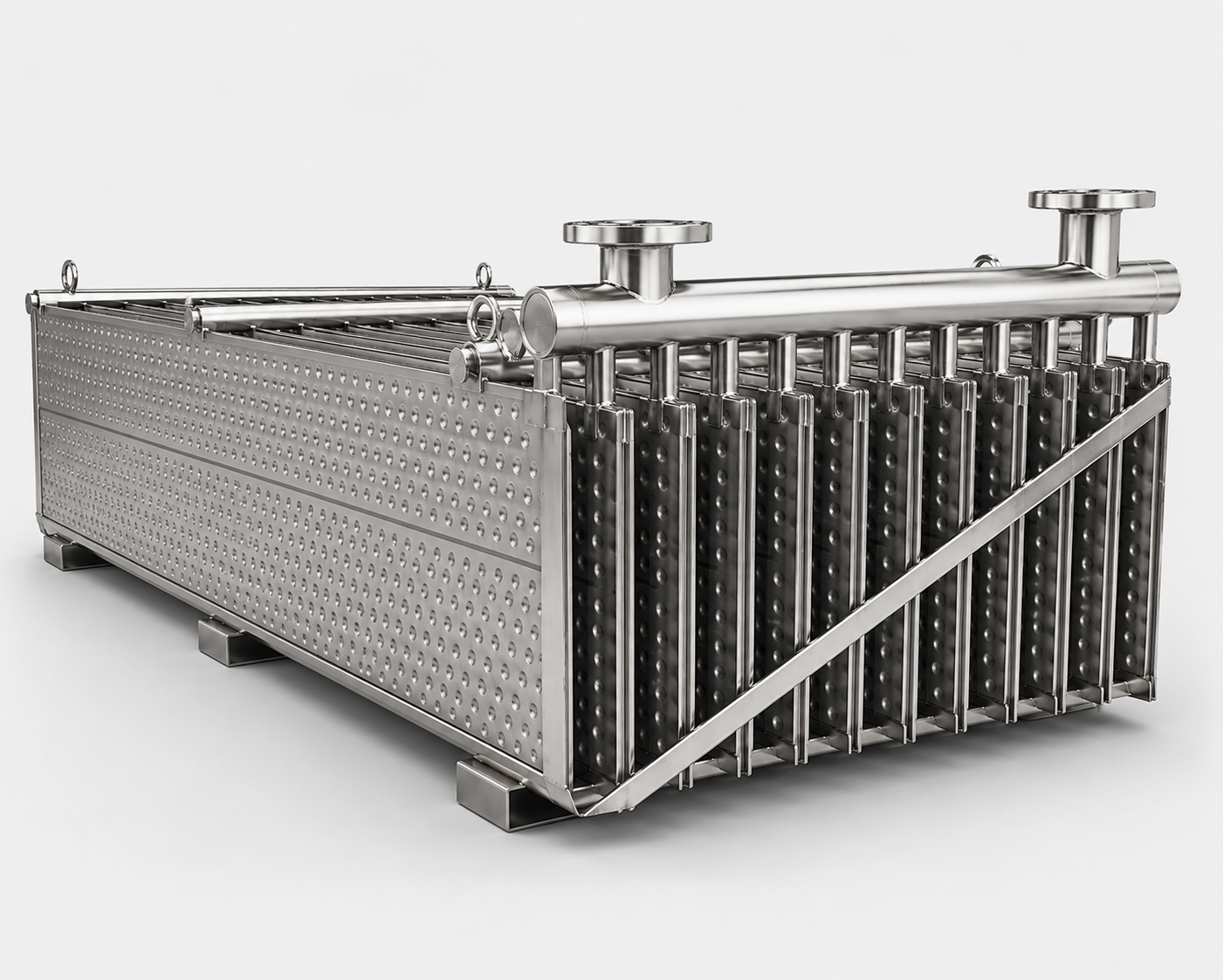

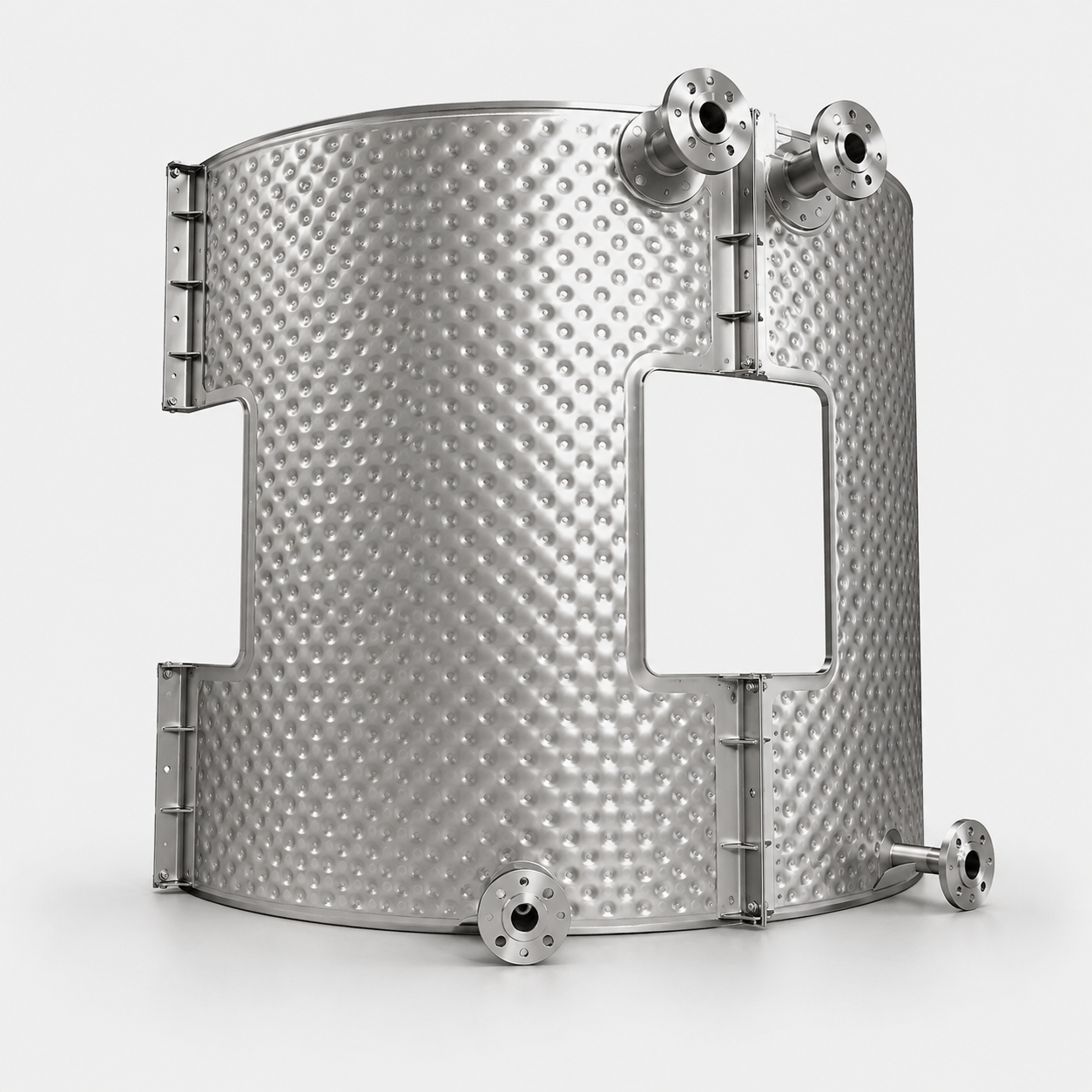

| Designation | Construction | Flow Type | Width | Length | Gauge | Area sq ft | Assembly |
|---|---|---|---|---|---|---|---|
| TP-DE-T5-12X29-18on18 | Double-Embossed | Type 5 - serpentine, in-tank liquid | 12" | 29" | 18 on 18 GA | 5 | Immersion Assembly |
| TP-DE-T5-12X47-18on18 | Double-Embossed | Type 5 - serpentine, in-tank liquid | 12" | 47" | 18 on 18 GA | 8.1 | Immersion Assembly |
| TP-DE-T6-24X47-18on18 | Double-Embossed | Type 6 - serpentine, high velocity | 24" | 47" | 18 on 18 GA | 16.1 | Immersion Assembly |
| TP-DE-T6-24X95-16on16 | Double-Embossed | Type 6 - serpentine, high velocity | 24" | 95" | 16 on 16 GA | 32.6 | Immersion Assembly |
| TP-DE-T8-36X95-16on16 | Double-Embossed | Type 8 - steam/refrigerant/liquid, low dP | 36" | 95" | 16 on 16 GA | 48.8 | Bank Assembly |
| TP-DE-T8-36X143-14on14 | Double-Embossed | Type 8 - steam/refrigerant/liquid, low dP | 36" | 143" | 14 on 14 GA | 73.5 | Bank Assembly |
| TP-DE-T7-48X143-14on14 | Double-Embossed | Type 7 - steam, common manifold | 48" | 143" | 14 on 14 GA | 98 | Bank Assembly |
| TP-DE-T7-48X191-12on12 | Double-Embossed | Type 7 - steam, common manifold | 48" | 191" | 12 on 12 GA | 130.9 | Bank Assembly |
| TP-DE-T9-24X143-20on20 | Double-Embossed | Type 9 - steam heating | 24" | 143" | 20 on 20 GA | 49 | Immersion Assembly |
| TP-DE-T5-12X95-20on20 | Double-Embossed | Type 5 - serpentine, in-tank liquid | 12" | 95" | 20 on 20 GA | 16.3 | Immersion Assembly |
| TP-SE-T5-24X47-18on12 | Single-Embossed | Type 5 - serpentine, in-tank liquid | 24" | 47" | 18 on 12 GA | 16.1 | Clamp-On Assembly |
| TP-SE-T5-24X95-18on12 | Single-Embossed | Type 5 - serpentine, in-tank liquid | 24" | 95" | 18 on 12 GA | 32.6 | Clamp-On Assembly |
| TP-SE-T6-36X95-18on10 | Single-Embossed | Type 6 - serpentine, high velocity | 36" | 95" | 18 on 10 GA | 48.8 | Integral Heat Transfer Assembly |
| TP-SE-T6-36X143-18on10 | Single-Embossed | Type 6 - serpentine, high velocity | 36" | 143" | 18 on 10 GA | 73.5 | Integral Heat Transfer Assembly |
| TP-SE-T7-48X143-18on7 | Single-Embossed | Type 7 - steam, common manifold | 48" | 143" | 18 on 7 GA | 98 | Jacketed Shell and Head Assembly |
| TP-SE-T7-48X191-18on7 | Single-Embossed | Type 7 - steam, common manifold | 48" | 191" | 18 on 7 GA | 130.9 | Jacketed Shell and Head Assembly |
| TP-SE-T8-12X47-20on14 | Single-Embossed | Type 8 - steam/refrigerant/liquid, low dP | 12" | 47" | 20 on 14 GA | 8.1 | Clamp-On Assembly |
| TP-SE-T8-12X95-20on14 | Single-Embossed | Type 8 - steam/refrigerant/liquid, low dP | 12" | 95" | 20 on 14 GA | 16.3 | Clamp-On Assembly |
| TP-SE-T9-36X191-18on12 | Single-Embossed | Type 9 - steam heating | 36" | 191" | 18 on 12 GA | 98.2 | Energy Recovery Bank |
| TP-SE-T9-48X95-18on12 | Single-Embossed | Type 9 - steam heating | 48" | 95" | 18 on 12 GA | 65.1 | Energy Recovery Bank |
20 part numbers.
Common FAQs
A drawing or sketch of the geometry, the design pressure and temperature on the media side, the process conditions the panel will see, the material and finish, and any code requirement. If some of that is unknown, tell us which part.
A single panel can typically be fabricated up to roughly 60 by 240 inches depending on material and thickness. Larger surfaces are built as multi-panel assemblies, which also makes handling and installation practical.
Yes. Mill, polished and passivated finishes are available, which matters where the panel is a product contact surface or lives in a washdown environment.
Use them to specify. They describe published standard sizes, but Temp-Plate is built to order and the quotation is against a drawing.
Double-embossed inflates both sheets, so both faces transfer heat — that is the immersion panel. Single-embossed leaves one face flat for welding to a vessel or drum wall.
